HY Series
EV Charging Stations
From home AC chargers to commercial DC fast charging — 7kW to 480kW, factory-direct manufacturing, OEM/ODM available.
EV Chargers Built for Every Power Range — 7kW to 480kW
AURALIS manufactures EV chargers across the complete power spectrum: AC chargers for home and small business installations, DC wall-mounted chargers for workplace and destination charging, and dual-gun DC fast chargers for public parking, fleet depots, and highway service areas. All chargers support CCS, CHAdeMO and GB/T connector standards, with OEM/ODM customization available for distributors, fleet operators, and private-label programs.
Product & Application Images

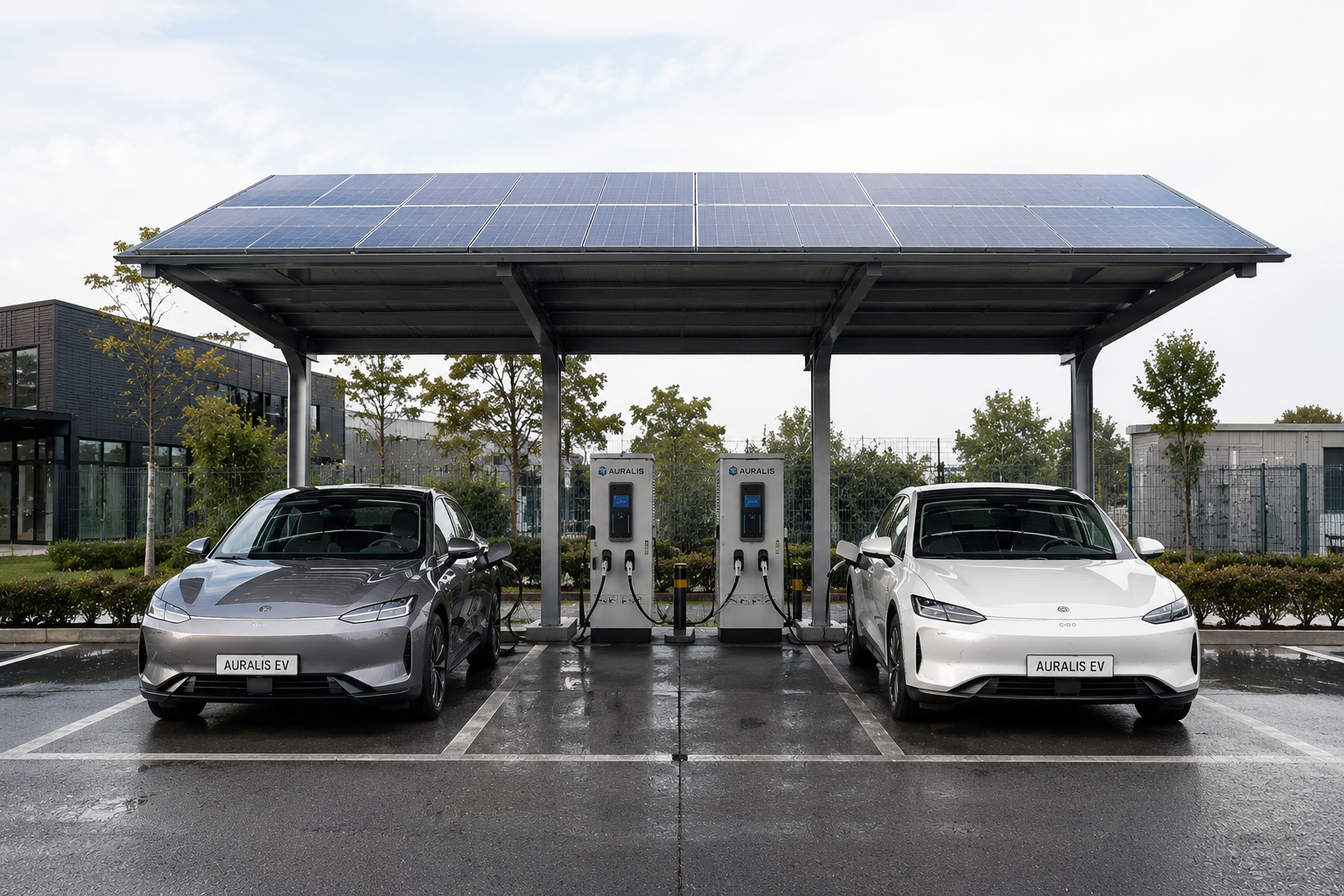

EV charging station application
EV Charger Specifications — 7kW to 480kW
Full technical data for the HY-DC wall-mounted series. Contact our engineering team for HY-AC and dual-gun fast charger datasheets.
| Item | 15kW | 20kW | 30kW | 40kW |
|---|---|---|---|---|
| Output Current | 37A | 60A | 100A | 133A |
| Output Voltage | 200–750V (200–1000V optional) | |||
| Input Current | 25A | 32A | 45A | 64A |
| Frequency | 50/60Hz | |||
| Efficiency | 95% | |||
| Weight | 20kg | 30kg | 44kg | 70kg |
| Protection Rating | IP54 | |||
| Connector | CCS / CHAdeMO / GB/T | |||
Higher-power options available: dual-gun DC fast chargers from 60kW to 480kW for large public parking lots, service areas, and fleet depots. Contact us for full specifications.
AC Chargers, DC Wall-Mounted & DC Dual-Gun Fast Chargers
Three product lines covering home charging through fleet-scale fast charging.
HY-AC Series — For Home & Small Business
Single-phase 7kW for home use; three-phase 11/22kW for higher-efficiency commercial charging.
- Max output current 16A (7kW model)
- IP65 protection rating
- Residential & commercial scenarios
HY-DC Wall-Mounted — For Workplace & Destination Charging
7-inch touchscreen, app control, Ethernet/4G/WiFi connectivity. CCS / CHAdeMO / GB/T connectors.
- Efficiency 95%, IP54 protection
- Power factor >0.99 at rated voltage
- Offices, hotels & destination sites
HY-DC Dual-Gun Fast Charger — For Fleets & Public Charging
Dual-gun design with independent power allocation, VIN plug-and-play support, and remote OTA upgrade.
- Peak efficiency >96%, noise ≤65dB
- Parking lots, service areas, fleet depots
- New & old national standard compatible
EV Charging Solutions for Every Buyer
From a single home charger to a depot-wide fleet network.

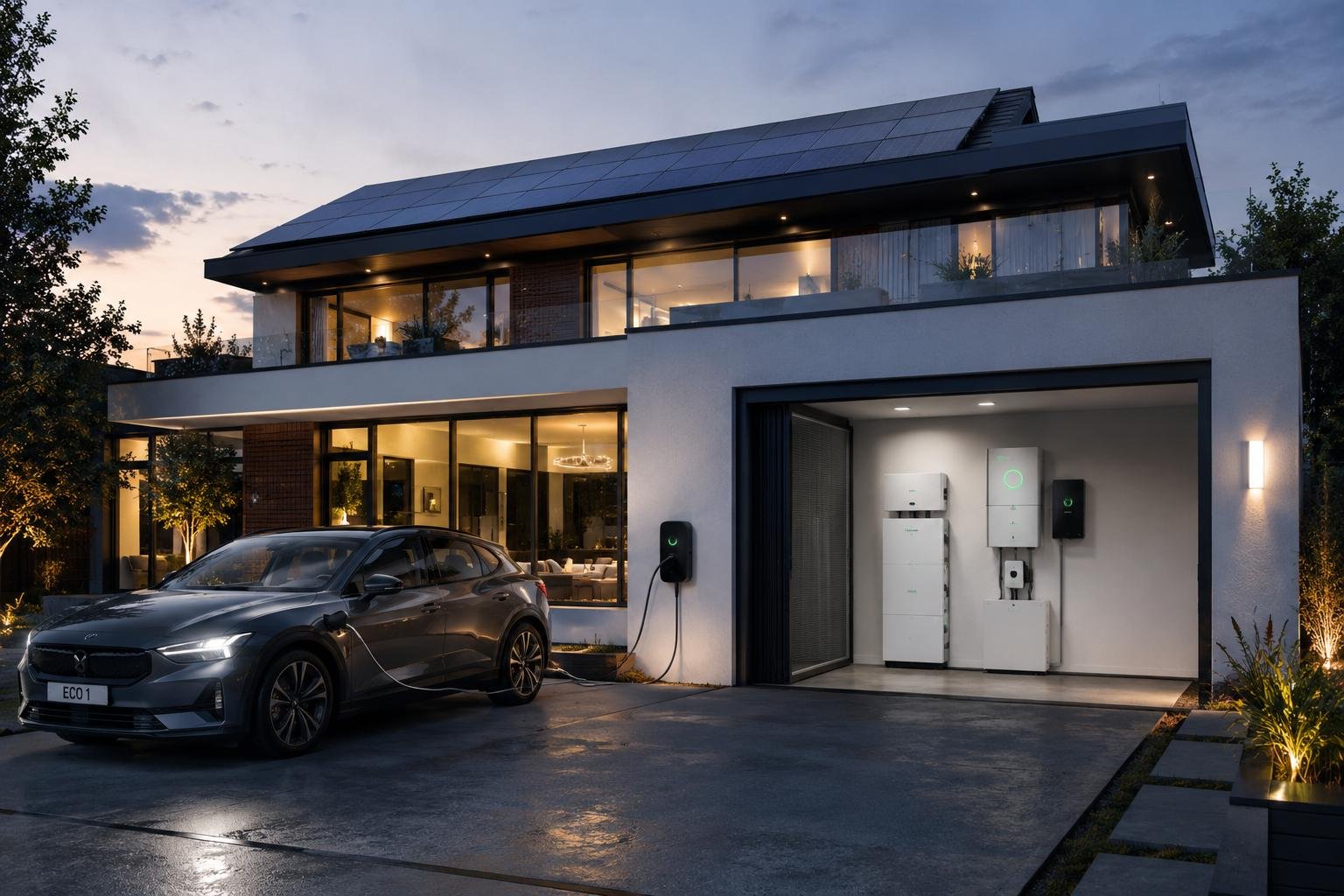

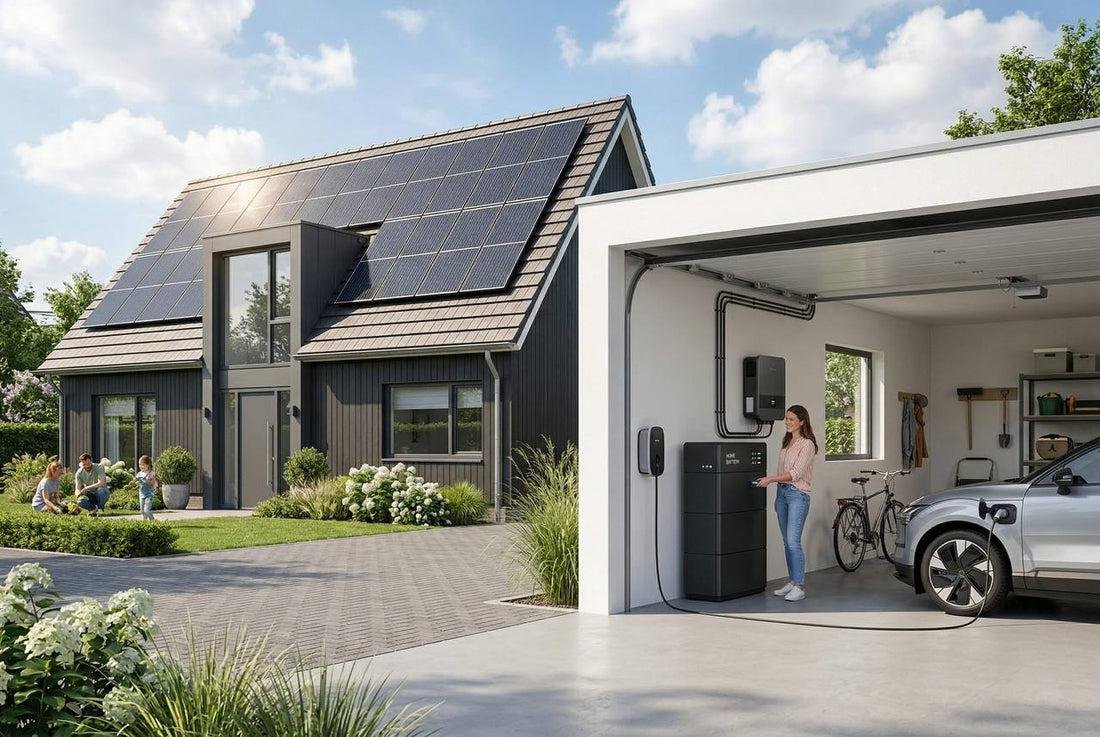

Home & Small Business
Single-phase 7kW AC charging for home garages; three-phase 11/22kW for small commercial installations.
Workplace & Destination Charging
DC wall-mounted chargers bring fast charging to offices, hotels, and destination parking with app control and multi-connector support.
Fleet Depots & Public Charging
Dual-gun DC fast chargers scale from 60kW to 480kW for public parking, fleet depots, and highway service areas.
Paired with C&I Storage
Pair with our C&I energy storage for sites facing grid connection limits — store off-peak power, discharge it into fast chargers during the day.
Universal Connector & Standards Compatibility
Every AURALIS EV charger supports CCS, CHAdeMO and GB/T connector standards, and is compatible with new and old national charging standards — giving fleet operators, property developers and distributors confidence across regions and vehicle brands.
- CCS / CHAdeMO / GB/T connector support
- Compatible with new and old national standards
- IP54 (DC) / IP65 (AC) protection ratings
- VIN plug-and-play & remote OTA upgrade (dual-gun DC)
- OEM / ODM customization available
EV Charging Stations — Case Studies
We don't yet have a published case study specific to our AC or DC EV charger product lines. See all projects for our full list of installations across other product lines, or contact us to discuss reference sites for EV charging deployments.
EV Charging Stations — Frequently Asked Questions
Common questions from homeowners, property operators, fleet operators and distributors evaluating our charger lineup.
Which charger type is right for my situation?
HY-AC (7–22kW) suits home and small business charging on single- or three-phase supply. HY-DC wall-mounted (15–40kW) brings faster charging to workplaces and destination sites. HY-DC dual-gun fast chargers (60–480kW) are built for public parking, fleet depots and highway service areas. Contact our team if you're not sure which fits your project.
Are your chargers compatible with my vehicle?
Yes. All AURALIS EV chargers support CCS, CHAdeMO and GB/T connector standards, and DC dual-gun fast chargers are compatible with both new and old national charging standards — covering virtually any EV on the road.
Can a dual-gun fast charger serve two vehicles at once?
Yes. Dual-gun independent power allocation lets two vehicles charge simultaneously without compromising charge speed for either vehicle.
How do fleet operators manage a network of chargers?
VIN plug-and-play support and remote OTA upgrades let fleet operators manage an entire charging network without a truck roll to each site.
Is OEM/ODM customization available?
Yes. Private-label and volume production are available for distributors, fleet operators and system integrators.
Can EV chargers be paired with energy storage?
Yes. Pair with our C&I energy storage for sites facing grid connection limits — storing off-peak power and discharging it into fast chargers during the day.
What's the typical lead time for an EV charger order?
Lead time depends on charger type, power rating and configuration. Contact our engineering team via the quote form below or WhatsApp for a project-specific lead time and quotation.
